جزئیات محصول:
|
| application: | Other, Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking Water Treatment, Family Homes, Food And Beverage Industry, Hvac OEM, Industrial Boilers, Industrial Utilities, Irrigation and Ag | pressure: | Low Pressure |
|---|---|---|---|
| warranty: | 1 year | customized support: | OEM, ODM |
| motor: | None | outlet size: | 25mm |
| power source: | Pneumatic | structure: | Diaphragm Pump |

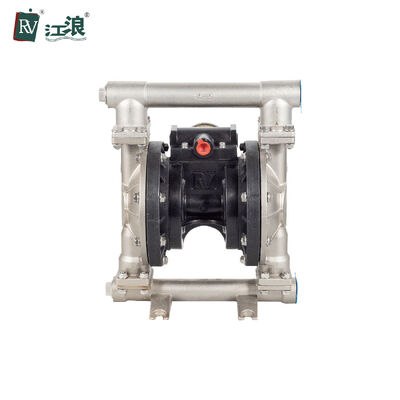

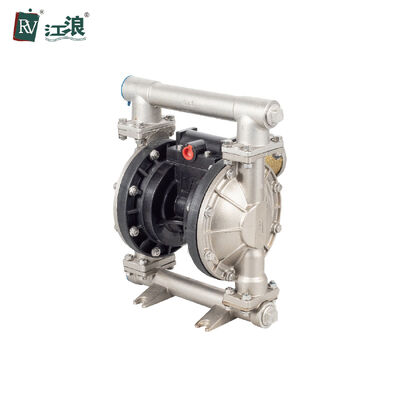

| Material: | 304 Stainless Steel | Name: | AODD Pump |
| Color: | silver | Diaphragm: | PTFE |
| Speed: | 276cpm | Brand: | RV |
| Packing: | carton | Max pressure: | 120psi(0.84Mpa,8.4bar) |
| Pump body: | 304 Stainless Steel | Max Flow: | 40gpm(150lpm) |
| Power: | None | ||
| برجسته کردن: | پمپ دیافراگمی از جنس استنلس استیل 1 اینچی,پمپ انتقال فاضلاب با هوا,پمپ دیافراگمی پنوماتیک برای آب آشامیدنی,air operated wastewater transfer pump,pneumatic diaphragm pump for drinking water |
||
حداکثر فشار کاری | 120 پسی (0.84Mpa، 8.4bar) |
حداکثر میزان جریان | 40gpm ((150lpm) |
حداکثر سرعت متقابل | ۲۷۶ سی پی ام |
حداکثر ارتفاع مکش (شک مکش) | 5 متر |
حداکثر غلات مجاز | 0.16 اینچ (4 میلی متر) |
حداکثر مصرف هوا | ۴۵ اس سی اف ام ((۲۲٫۵ لیتر/ ثانیه) |
اندازه ورودی هوا | نصف در |
اندازه خروجی هوا | سه چهارم |
اندازه ورودی مایع | 1دقيقه |
اندازه خروجی مایع | 1دقيقه |
وزن | پمپ فولاد ضد زنگ:15.7KGS |
