جزئیات محصول:
|
| warranty: | 1 year | customized support: | OEM, ODM |
|---|---|---|---|
| application: | Other, Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Ag | power source: | Pneumatic |
| pressure: | Low Pressure | structure: | Diaphragm Pump |
| outlet size: | 3 inch | voltage: | NO |
| power: | NO | motor: | NO |

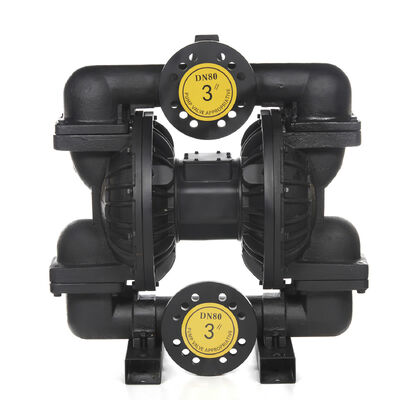

| Material: | Ductile Iron | Name: | AODD Pump |
| Color: | black | Weight: | 100kgs |
| Diaphragm: | PTFE | Brand: | RV |
| Packing: | carton | Max pressure: | 120psi(0.84Mpa,8.4bar) |
| Pump body: | Ductile Iron | Max Flow: | 270gpm(1022lpm) |
| برجسته کردن: | پمپ دیافراگمی پلاستیکی برای فاضلاب,پمپ دیافراگمی برای آبیاری کشاورزی,پمپ دیافراگمی صنعتی با گارانتی,diaphragm pump for agriculture irrigation,industrial diaphragm pump with warranty |
||
حداکثر فشار کاری | 120 پسی (0.84Mpa، 8.4bar) |
حداکثر میزان جریان | 270gpm ((1022Lpm) |
حداکثر سرعت متقابل | 135 سی پی ام |
حداکثر ارتفاع مکش (شک مکش) | 5 متر |
حداکثر غلات مجاز | 0.37 اینچ (9.4 میلی متر) |
حداکثر مصرف هوا | (90L/S) |
اندازه ورودی هوا | سه دقيقه |
اندازه خروجی هوا | 1 در |
اندازه ورودی مایع | 3 در |
اندازه خروجی مایع | 3 در |
وزن | آلومینیوم 99.5 کیلوگرم آهن انعطاف پذیر 200 کیلوگرم |
