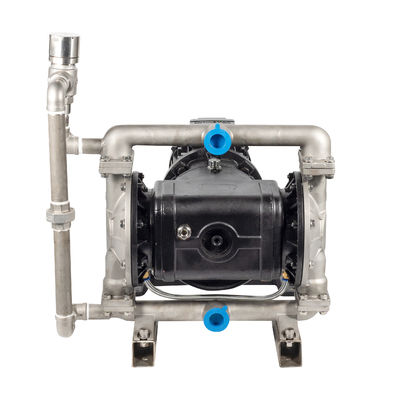

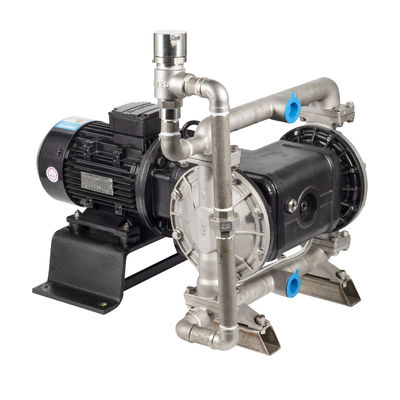

1 Inch Electric Air Diaphragm Acid Chemical Liquid Pump
Specifications
| Parameter |
Value |
| Max Outlet Pressure |
0.6Mpa, 6bar |
| Max Flow Rate |
3.5m³/h |
| Max Suction Lift |
3m |
| Motor Power |
1.5KW standard (2.2KW optional) |
| Motor Speed |
1450r/min |
| Fluid Inlet Size |
1 inch Threaded or Flange |
| Fluid Outlet Size |
1 inch Threaded or Flange |
| Weight |
Stainless steel: 122 KGS
Aluminum: 77 KGS
Carbon steel: 115 KGS |
Product Images
Our Advantages
Packing & Delivery

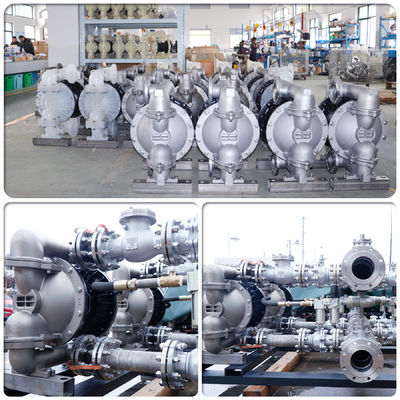

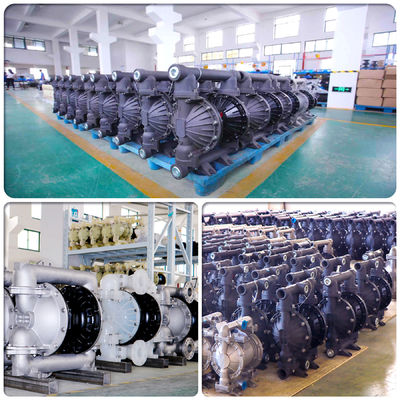

Company Profile
Shanghai Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. We have been awarded as High-Tech Enterprise and Credit Company in consecutive years.
We specialize in diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, and various control valves. Our products hold over 40 patents, including 10 invention patents.
We serve industries including chemical, painting & coating, water treatment, petroleum, environmental protection, and food/pharmaceutical. Our clients include BASF, Bayer, and SAMSUNG, with exports to over 70 countries.
Material Options
- Wetted parts: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel
- Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N
- Available sizes: 1/4" to 3"
- Connection types: Threaded or flanged
Our Service
- 24-hour response to all inquiries
- Professional design and production team
- Standard export wooden case packaging
- Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples available with cost deductible from future orders.
Q: What's the payment method?
A: D/P, T/T, Western Union - confirmed with exact order.
Q: What is the delivery time?
A: Typically 1-7 working days, depending on quantity.
Q: What about packaging?
A: Cartons with foam inside, wooden case & pallet.
Q: How are products delivered?
A: By international express or sea freight.
Q: How long is the warranty?
A: 15 years for air motor, 5 years for pump body.
Q: Can products be customized?
A: Yes, we can produce according to custom requirements.
