Stainless Steel AODD Pump with PTFE Diaphragm
1.5" Size Pneumatic Power Source for Wastewater Treatment
Product Specifications
| Specification |
Value |
| Max Working Pressure |
120 psi (0.84Mpa, 8.4bar) |
| Max Flow Rate |
40gpm (150lpm) |
| Max Reciprocating Speed |
276cpm |
| Max Suction Height (Dry Sucking) |
5m |
| Max Permitted Grain |
0.16in. (4mm) |
| Max Air Consumption |
45scfm (22.5L/S) |
| Air Inlet Size |
1/2 in |
| Air Outlet Size |
3/4 in |
| Fluid Inlet Size |
1in |
| Fluid Outlet Size |
1in |
| Weight |
Stainless Steel pump: 15.7KGS |

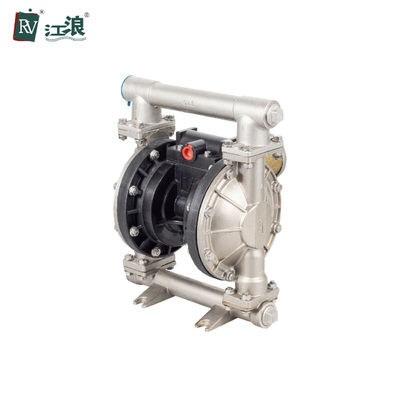

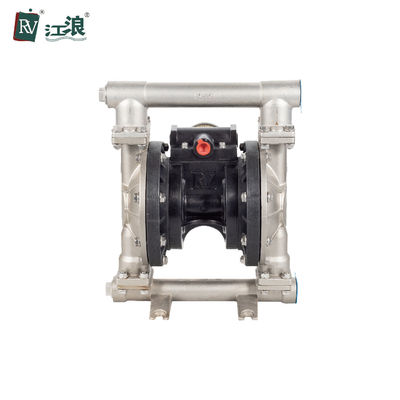

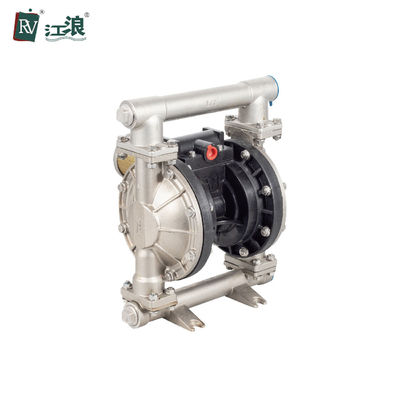

Product Images
Our Advantages
Packing & Delivery

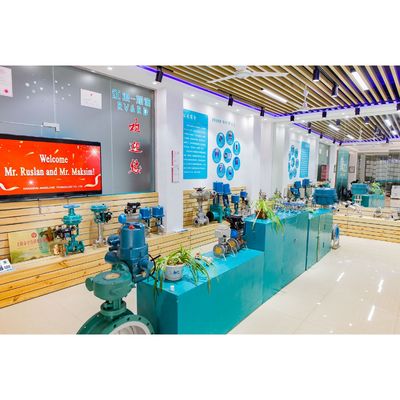

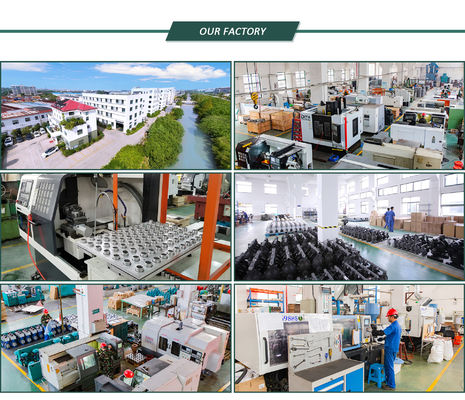

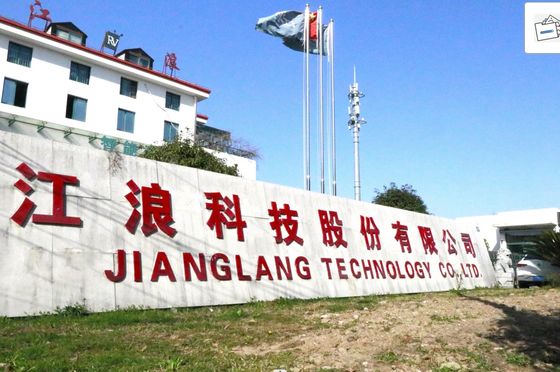

Company Profile
Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. We have been awarded as High-Tech Enterprise and Credit Company title in consecutive years.
Our product range includes Pneumatic Diaphragm Pumps, Electric Diaphragm Pumps, Piston Pumps, Powder Pumps, Sanitary Pumps, and various control valves. Our products have been granted more than 40 patents and comply with international standards including CE, ATex, and ISO9001.
We serve industries including chemical, water treatment, petroleum, environmental protection, and food/pharmaceutical. Our clients include BASF, Bayer, and SAMSUNG, with exports to over 70 countries.
Materials & Configurations
- Wetted parts materials: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel
- Diaphragm materials: Teflon, Santoprene, Viton, Hytrel, Buna-N
- Available inlet/outlet sizes: 1/4" to 3"
- Connection types: Threaded (1/4" to 1-1/2" for plastic, all sizes for metal) or Flanged (1/2" to 3" for plastic)
Our Service
- All inquiries replied within 24 working hours
- Professional design and production team
- Standard export wooden case packaging (non-fumigation)
- Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
Q: What's the payment?
A: D/P, T/T, Western Union, please confirm with us with exact order.
Q: What is the delivery time?
A: Depends on quantity. Generally 1-7 working days.
Q: What about package?
A: Cartons with foam inside & wooden case & pallet.
Q: How are the products delivered to us?
A: By International express or Sea.
Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
Q: Whether the products can be made of different standard?
A: Yes, we can produce according to custom requirements.
